Ultra Compact powerful designed for space

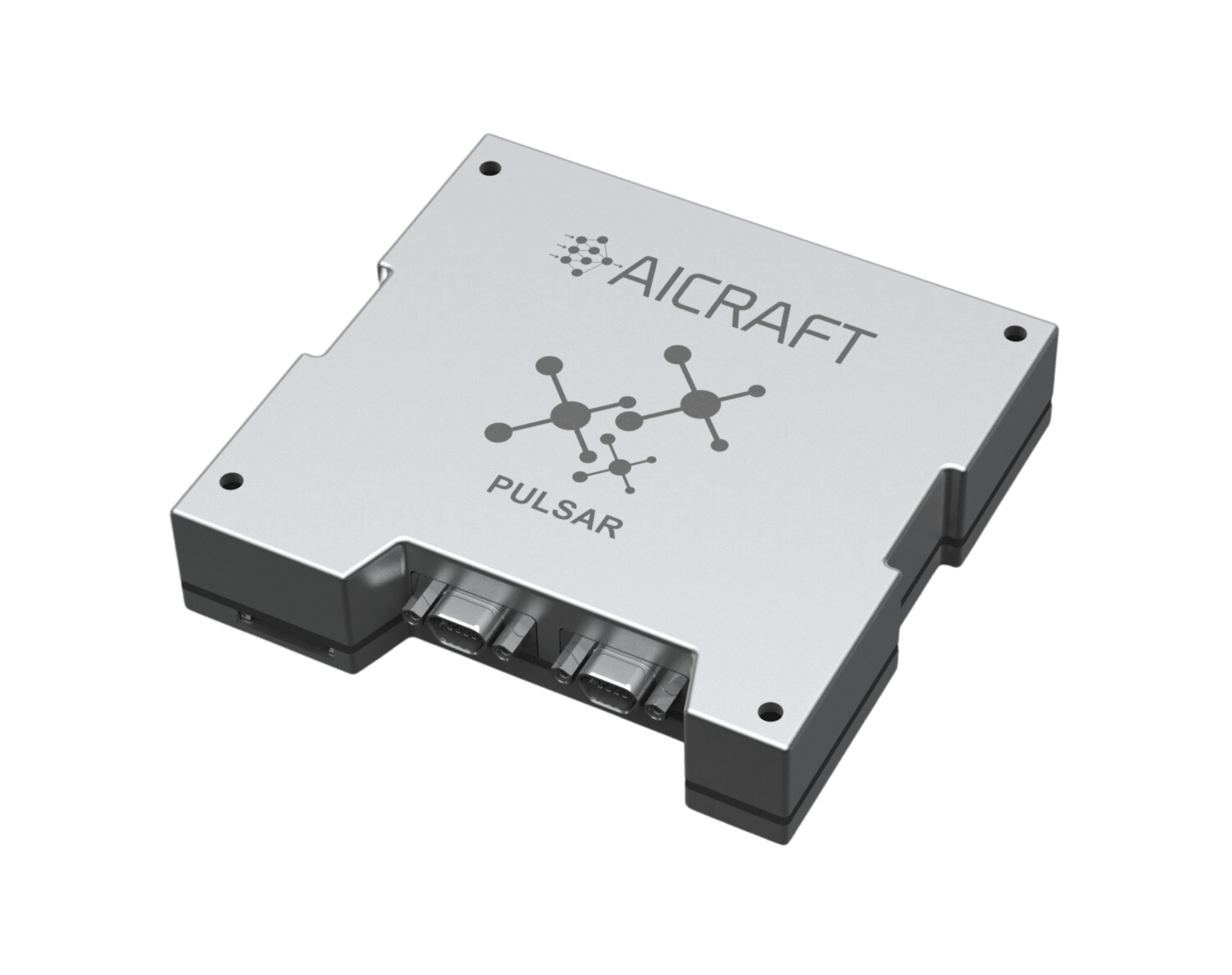

PULSAR Edge computing module
With 20 Gbps internal data bandwidth and 90 TOPS peak AI performance, this device will deliver powerful and timely processing in a small form factor and power consumption.
A unique range of 16 computing levels means power is never overspent and computation time is always optimal.
Another key benefit is a configurable Error Detection and Correction (EDAC) scheme providing lower power, rad-hard level (default) integrity checks of critical data such as ML weights, bootup parameters and more. The scheme trades off reliability, power consumption and computational latency with simplicity through selectable settings.
Custom and third-party libraries can be installed through a software interface to run a variety of models with leading AI frameworks such as Keras, TensorFlow, Pytorch, ONNX, OpenVINO, Caffe2 and more.
Multi-core ARMv8, 64-bit operations
90 TOPS peak performance
4GB DDR4 SDRAM with ECC
64GB SLC NAND with ECC (up to 2TB)16Mb rad-hard-equivalent memory with EDAC
1 Gbps (option: 2.5 Gbps)
200 Mbps (optional)
H.264, H.265 (HEVC)
All common frameworks
3-axis lateral and 3-axis longitudinal
Device, processor, co-processor
Device (total power), processor, co-processor
Dimensions (L x W x H)
95mm x 90mm x 21mm
-40⁰C to +105⁰C
-40⁰C to +115⁰C
What comes in the kit?
- Pulsar Engineering Model or Flight Model
- Pulsar SDK and AI/ML compiler
- Application-specific software libraries (optional)
