higher performance low power more versatile more powerful

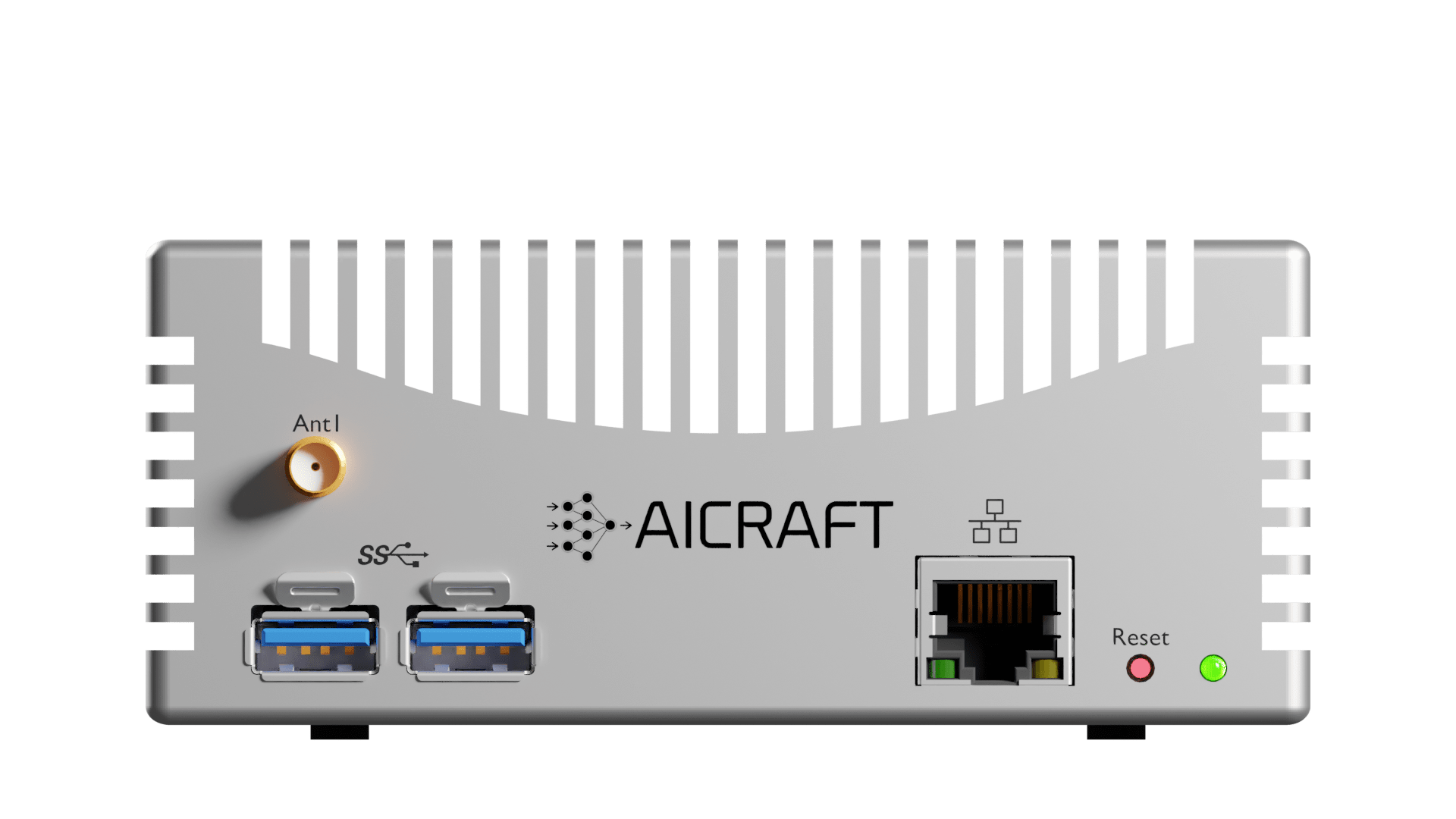

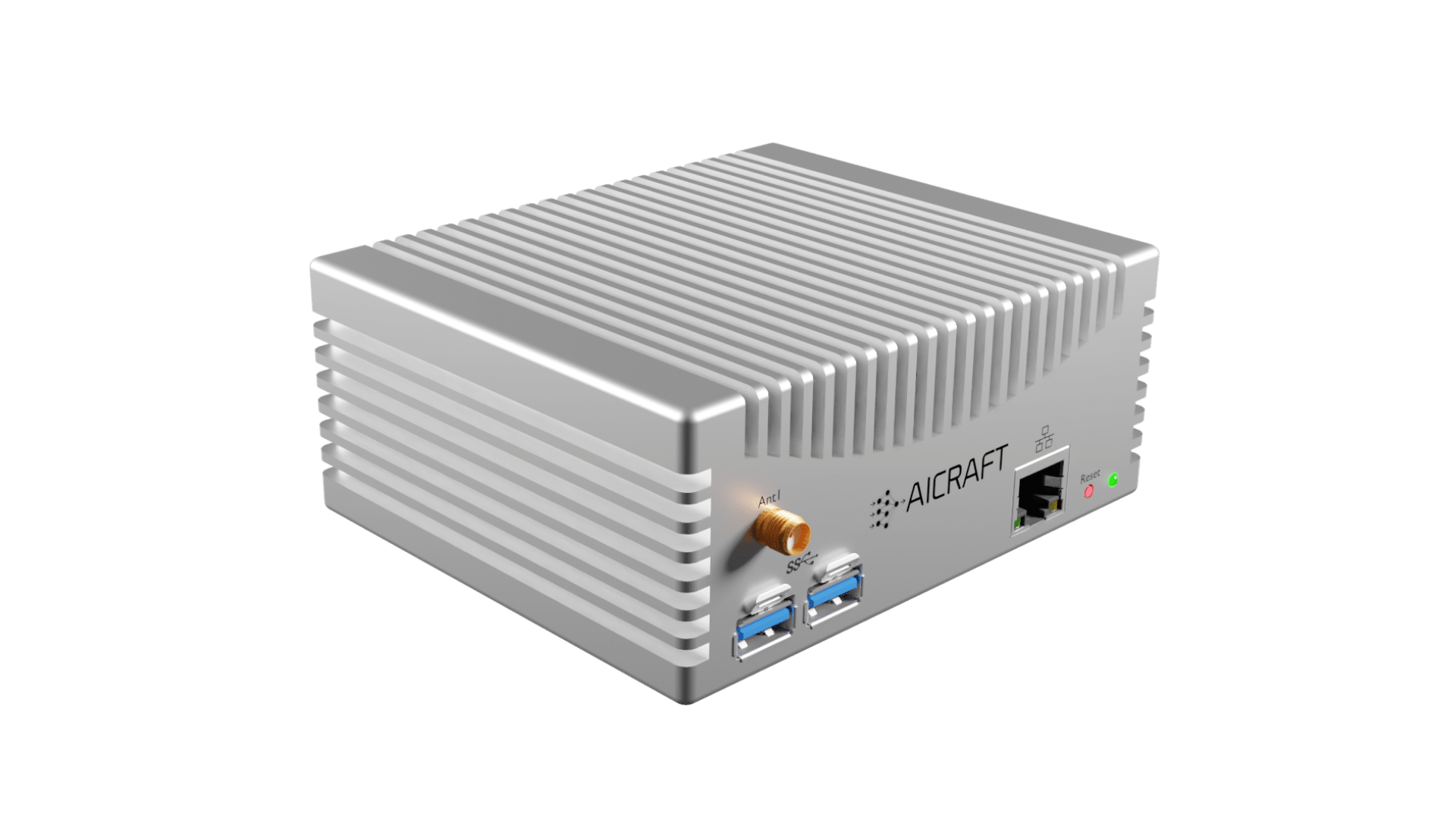

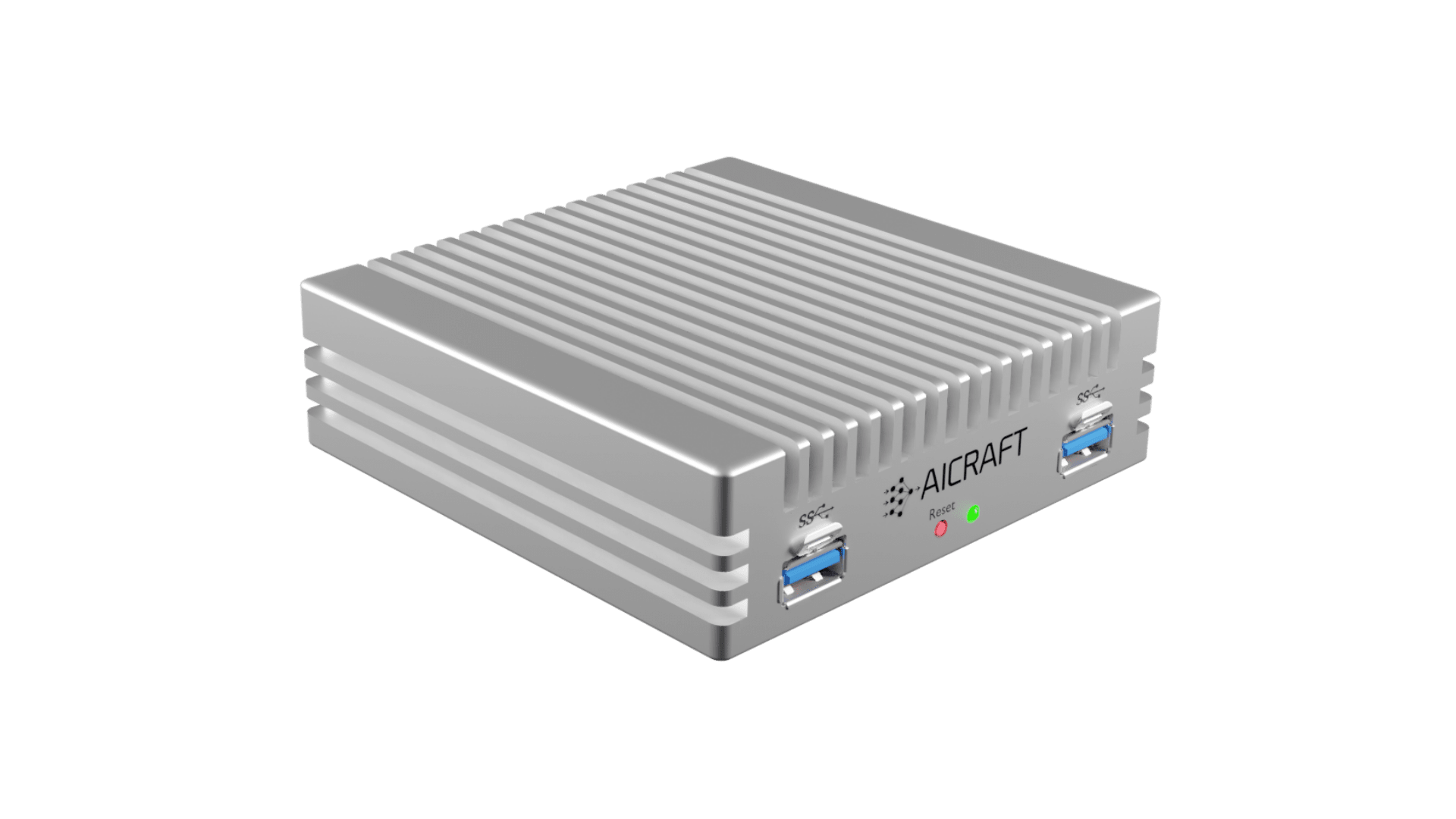

neo-2 Edge computing hub

→ Compact size and lightweight→ Ultra-high-performance computing for AI→ Ultra-high-speed networking (10 Gbps Ethernet)→ Connectivity: Wi-Fi, BLE or GNSS receiver, SDR→ Fanless and ruggedised.
This hub is all about computing power and connectivity!
Fielding Artificial Intelligence at its best! This device brings high-performance machine learning, communication and networking altogether into one device. The 300 TOPS of effective AI performance will satisfy inferencing demands of transformers, convolutional neural networks and other advanced machine learning models supported by an 8-core ARMv8 to handle any pre/post-processing and interface tasks. This default AI capability is extendable to a massive 1200 TOPS with AICRAFT’s dedicated high-performance computing card that plugs in NEO-2 and packed in a small flat rack. A key benefit of this device is to reduce raw data into actionable signatures that can be pre-loaded and/or augmented over time as new data is acquired. This effectively trains the AI on the go and does not require re-training on the entire data set, saving much time and cost. Execute multiple neural networks in parallel and process high-resolution multi-sensor data coming simultaneously from six high-speed USB connectors. With field deployment in mind, all USB ports have a locking mechanism to prevent cables from getting unplugged. Install custom libraries and use the software interface to run a variety of machine learning models with over 20 of the leading-edge AI frameworks supported.
NEO-2 comes with:
Protective (waterproof, shockproof, multi-lock) case

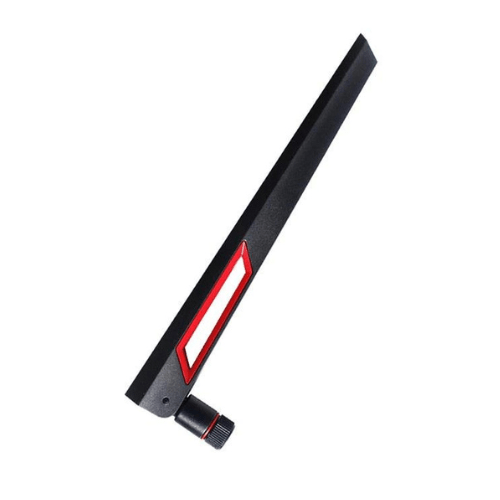

12dBi dual band (2.4GHz, 5GHz) antenna
Download
NEO-2 edge computing hub flyer (PDF)
Want simpler and more compact?
Check out NEO-1

product applications

Drones
Hyperspectralprocessing
Autonomous vehicles
Syntheticaperture radar
Balloons
Software-definedradio
Pseudo-satellites
Beamforming

Technical specifications

Peak AI Performance
1200 TOPS
Processor
8-core ARMv8 (up to 16 cores)
Memory
8 GB DDR4 SDRAM with ECC (up to 32 GB)
Video codec
H.264, H.265 (HEVC)
ML co-processor
300 TOPS peak performance (up to 1200 TOPS)
Networking
Wi-Fi 802.11 b / g / n / d / e / i / k / rBluetooth Low Energy (BLE) 5.1Option: 1x receiver for GPS,GLONASS,QZSS,Galileo,Beidou
USB
4x USB 3.0 Type-A (10 Gbps max)
Ethernet
2x 2.5 Gbps2x 10 Gbps
Operating system
Linux
Sensors
Vibrations: 3-axis lateral and 3-axis longitudinal Temperature: Device, processor, co-processor Power monitors: Device (total power), processor, co-processor
Storage
256 GB SSD with ECC (up to 2 TB)
Input voltage
12V~24V (4-pin connector)
Operating Temperature
-40°C to +105°C
Dimensions
110 x 110 x 70mm (Width x Depth x Height)
